MDHR-1, MDHS-2, Magnetic Door Holder
- Product Code:
- Availability: In Stock
-
$0.00
- Tri-voltage (Can be wired 12V DC, 24V AC / DC or 120V AC)
- Can be used on Fire or Smoke Barrier doors Held-Open until released by a Remote Switching device
- Used alternatively as Hold-Open system
- Thru-bolted Armature for Security
- 30-45 Pound Holding Power
- Underwriters US and Canada Listed
- ANSI / BHMA 156.15
- Available in US28 (Brushed Aluminum), Duro and Gold finishes
TEMPLATE
Template - MDHR-1, MDHR-2, Magnetic Door Holders
INSTALLATION INSTRUCTIONS
Instructions - Magnetic Door Holder Wiring Instructions
CUTSHEET

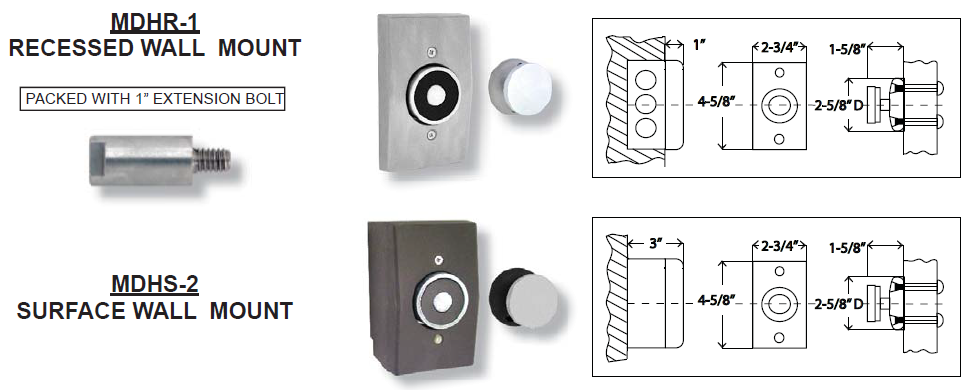

Recessed / Surface Wall Mount
- Tri-Voltage (12, 24V DC or 120V AC)
- 30-45 pound holding power
- Thru-Bolted Armature for Security
- Approved by the California Department of Forestry & Fire in accordance with printed instructions, applicable codes and ordinances in a manner acceptable to the authority having jurisdiction.
 |
 |
