Cal-Royal Products, Inc.

• Apple and Android Compatible – iPhone 4S or above with iOS 8.0 and above. Android 4.3 or above with Bluetooth Low Energy capability.
• Gateway Connectivity – optional gateway device to connect compatible locks to the internet, so users can manage locks remotely.
• Bluetooth Connectivity – lock can be managed / synced using the K3 (Apple) and K3 (Android phones without NFC), and K3+ (Android phones with NFC) app.
• NFC (Near Field Communication) Interface – NFC compatible for android phones. For the complete list of phones, please go to link: www.nfcworld.com/nfc-phones-list/#available
• Admin Phone – a lock can only have one Administrator phone at a time. Only smartphones are used as Administrator. One admin phone can manage up to 250 locks.
• Access Log (Audit Trail) – the K3 app features a 24 / 7 activity log, so you can keep track of who accessed the lock. A timestamped access log can be shared by the Admin phone via email. 10,000 audit trail entries.
• Passage Mode – once enabled by the Admin, the unit is unlocked continuously until “Disable Passage Mode” is initiated.
• Tones and LED Indicators – indicates the operating status of the lock accompanied by the corresponding tones / beeps.
• Restricted Access Right – RS2100 can be programmed to specify the access period or intervals of users.
• Keypad Anti-Tamper Lockout – if an invalid code is entered 3 times consecutively, the unit will alarm 10 beeps and stay idle for 1 minute.
• RFID Card (Standard) – compatible with existing MIFARE infrastructure. Operates at 13.56 MHz in accordance with ISO 14443A. Inductive distance up to 1 3/16”.
• RFID KEY FOB (Optional) – compatible with existing MIFARE infrastructure. Operates at 13.56 MHz in accordance with ISO 14443A. Inductive distance up to 1 3/16”.
• Weather Resistant - the RS2100 is designed to ensure that internal electronic parts are protected from moisture, dust, water and corrosion. All models are weather resistant with operating temperature of +149°F to -4°F (+65°C to -20°C) and storage temperature of +176°F to -22°F (+80°C to -30°C).
• Low Battery Warning – when voltage is lower than safety power, RS2100 gives beep sound warning after unlocking the device.
• Clutch Technology – the outside lever of the RS2100 is a free-wheeling lever. If no valid code is entered, the lever will just turn freely without moving any parts inside. Thus, preventing breaking or tampering.
• Non- Handed – RS2100 is reversible for left and right hand openings.

• APPLICATIONS
  For residential and standard duty commercial applications.
• DOOR RANGES
  1 ⅜” to 1 ¾” thickness.
• BACKSET
  2 ⅜” Standard, optional 2 ¾”
• LATCH FACEPLATE
  Standard 2 ¼” x 1” for 2 ⅜” backset. Optional 2 ¼” x 1 ⅛” for 2 ¾” backset.
• PROXIMITY CARD (STANDARD)
  2 pcs. included. Compatible with existing MIFARE infrastructure. Operates at 13.56 MHz in accordance with ISO 14443A. Inductive distance up to 1 3/16”.
• RFID KEY FOB (OPTIONAL)
  Operates at 13.56 MHz in accordance with ISO 14443A. Inductive distance up to 1 3/16”.

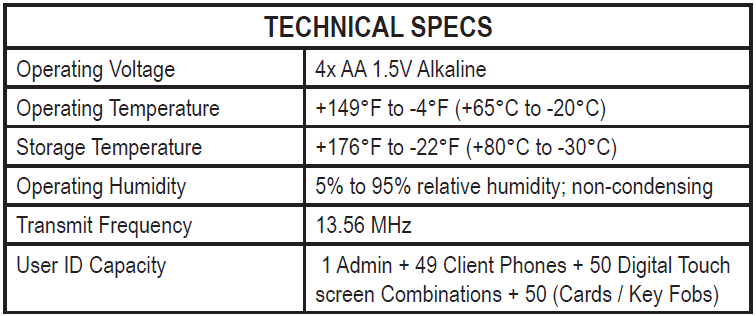

• POWER SUPPLY
  4 AA 1.5V Alkaline Batteries (comes standard in packing).
• BLE GATEWAY CONNECTIVITY
  Optional BLE Gateway connectivity for remote lock management.
• CLUTCH
  Clutch technology allows turning of lever without retracting latch. Thus prolonging the life of the lock by reducing stress on the spindle and other parts.
• CYLINDER & KEYWAYS
  5 pin solid brass “C” keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 /60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High Security Cylinders.
• WEATHER RESISTANT
  All models are weather resistant for operating temperature ranges of +149○F to -4○F (+65○C to -20○C) and storage temperature ranges of +176○F to -22○F (+80○C to -30○C).
• BLUETOOTH CONNECTIVITY
  Lock can be managed / synced using the K3 (Apple) and K3+ (Android) app.
• ACCESS LOG (AUDIT TRAIL)
  The K3 app features a 24 / 7 activity log, so you can keep track of who accessed the lock. A timestamped access log can be shared by the Admin phone via email. 10,000 audit trail entries.
• STRIKES
  Full lip strike standard. ASA strike available on request.

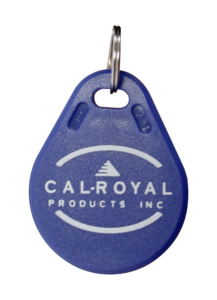

RFID KEY FOB (optional)

BLEGW-99 (optional) Internet to Bluetooth signal converter (BRIDGE)

Templates

• rs2000templatelhrh

Installation Instructions

• Installation Instructions - RS2100
• Owner's Programming Manual - RS2100
• How to Reverse Handing - RS2100
• Gateway features
• Guide in adding NEW PHONE CLIENT
• Guide in adding existing RFID or KEYFOB
• Guide in adding NEW RFID or KEYFOB
• Guide in adding NEW USER CODE
• Guide in PAIRING LOCK WITH ADMIN PHONE
• Guide in GATEWAY SETUP
• Guide in SYNCING ADMINPHONE WITH LOCK
• Guide in SYNCING LOCK AND ADMIN PHONE

[Download File]

[Download File]

Residential / Light Commercial Phone Lock

• For residential and light commercial applications.
• Meets ADA requirements Specially designed for Barrier Free Application Conforms with ANSI A156.2, Series 4000, GRADE 2
• Apple and Android Compatible
• BLE (Bluetooth Low Energy) Management
• Optional Gateway Connectivity (Remote Management Through The Internet)
• Proximity RFID Card (13.56 Mhz) Standard
• Digital Touchscreen
• Timestamped Access Log (Audit Trail)
• RFID Key Fob (Optional)
• 1 Admin Phone, 49 Client Phones Per Lock
• 50 Digital Touchscreen Combinations Per Lock
• 50 RFID Cards / Key Fobs Per Lock
• 10,000 Audit Trail Entries
• 1 Admin Phone Can Manage Up To 250 Locks
• Emergency Key Override
• Individual User Access Mode
• Passage Mode
• Weather Resistant
• Buzzer & Led Indicators
• Anti-Tamper Lockout
• Low Battery Warning
• Emergency Charge Interface
• Clutch Technology
• Non-Handed, Reversible
• 2 Year Warranty
