N-98CVR & N-F98CVR Series
- Product Code:
- Availability: In Stock
-
$0.00
- LBR (Optional) - No Bottom Strike. Free access for wheel chairs, stretchers and carts which eliminates tripping potential and disfiguration of floors due to dragging of bottom bolts.
- For Doors - Wood or Metal. 1 ¾” (44.5 mm) minimum thickness, 4 ½” (114 mm) minimum stile width
- Top & Bottom Chassis - Steel Material
- Chassis Cover - Stainless Steel Material
- Mounting - Furnished standard with wood and machine screws
- End Cap - Stainless Steel Construction
- Hand - Handed. Easily field reversible. Specify at time of order LHR, RHR for convenience
- ANSI Standard - A156.3, Grade 1

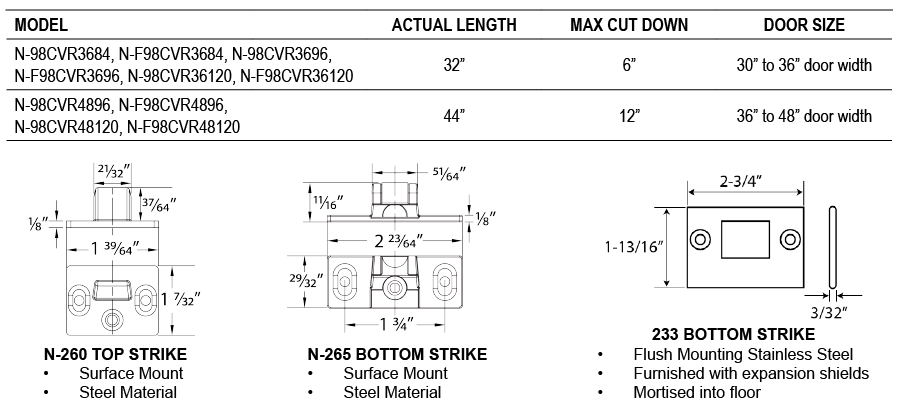

- Strikes - N-260 & N-265 (Steel), 233 (Stainless Steel)
- Fire Exit Hardware - N-F98CVR Series for fire exit hardware for all types of 8’ x 10’ double doors, LBR Series for fire exit hardware for all types of 8’ x 10’ double doors for up to 3-hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes.
- Rail Height - Specify door opening and mounting height of the center line of rail when ordering a Vertical Rod Exit Device 41” from floor
- Trim - See Trim Designs section
- Electronic Functions - (ELR) Electrical Latch Retraction and RX & LX Signal Switch available
- Alarm - Prefix “NALRM” before PART #
- Dogging Feature - Cylinder dogging available for non-rated applications
- Anti-Microbial Coating - Available on US32D only. Use part # ANTB-EXIT
Template & Installation Instructions:
- INSTALLATION INSTRUCTION FOR N-CVRESC TRIM & CHANGE HANDING
- TEMPLATE FOR N-98VCR/N-F98CVR HEAD CHASSIS
- TEMPLATE N-98CVR / N-F98CVR TOP STRIKE
- TEMPLATE FOR N-98CVR / N-F98CVR BOTTOM MORTISE STRIKE
- TEMPLATE FOR N-98CVR / N-F98CVR BOTTOM ROLLER STRIKE
- N-F98CVR INSTALLATION INSTRUCTION
- N-98CVR INSTALLATION INSTRUCTION
CONCEALED VERTICAL ROD EXIT DEVICES FOR BOTH WOOD & METAL DOORS
For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement.
- N-98CVR & N-F98CVR SERIES
- ANSI A156.3, GRADE 1 heavy duty exit device
- Americans with Disability Act (ADA) Compliant, 5 lbs opening force on ADA products only
- UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
- UL Listed for Fire Exit Hardware. 3 hours.
