45-RIM & F45-RIM Series

Qty

For Doors - 1 ¾”- 2 ¼” thick standard. 3 5/16” minimum stile width for single door application using standard roller strike. 4 21/64” minimum stile width required for double door application with overlapping strike.
Chassis - Steel material for Panic and Fire Grade
Cover - Aluminum Material
Mounting - Furnished with wood and machine screws. Available thru-bolts on request. Thru bolts are included and standard packaging on fire-rated devices.
Hand - Handed. Easily field reversible. Specify handing for convenience.
Latch Bolt - Stainless Steel material, 11/16" throw
ANSI Standard - A156.3, Grade 1
Cross Bar - Aluminum material; 1" diameter, 0.058" thick
Dogging Feature - Allen-type key furnished standard on non-fire labeled devices
Mullion - Available
UL and ULC Listed - 45-RIM Series for Panic. F45-RIM Series for Fire Exit Hardware for all types of 4' x 8' single doors and 8' x 8' double doors for up to 3-hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes.
Strike - (610) Roller Rim Strike
Finish - Aluminum (ALUM) or Dark Bronze Duranodic (DURO)

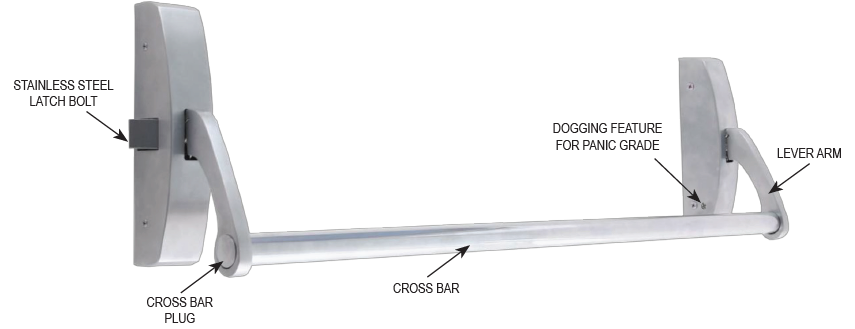

Features & Construction:

Americans with Disability Act (ADA) compliant. 5lbs opening force on ADA product only.
ANSI A156.3, Grade 1 Exit Device in Cross Bar Narrow stile Rim
Trim are thru-bolted for additional security
Conforms and meets ADA Regulations (ADA product only)
UL305 & UL10C Fire Exit Hardware. 3 hours.
(A) label rating on pairs of doors up to 8'0" x 8'0" swinging in same or opposite directions.
All inside components are made up of high rust-resistant alloy or heavily electroplated steel.
High shock resistant latching mechanical design for protection from vandalism.
Uncompromising security and safety in single and double fire exit doors.
Available in standard functions. Lever and escutcheon trims are Grade 1 construction trims
