Cal-Royal’s electrified lever trim provides remote locking and unlocking capabilities using industry safety standards. The 24V DC solenoid can be energized from a distant controller, thus allowing access control of the opening.

The control of stairwells in high-rise buildings is a common application for this trim, where electric pullback of the exit device’s latch bolt is cost prohibitive or not required. This is especially practical in applications where fire / life safety codes require a “fail-safe” condition which is not an option with electrified latch pullback devices. Because the current draw is quite low there is no need for a more expensive power supply to provide the surge current.

Options

• Available Fail Safe (electrically locked) or Fail Secure (Electrically Unlocked)
• Voltage options – 12V or 24V (AC / DC)
• Request to Enter Switch (REE) available
• CRU2 – Current Reduction Unit to improve solenoid life in “continuously on” applications

• Solenoid Continuous Duty 24VDC
• Operating Voltage 12 or 24VAC / DC + OR – 10% (must specify 12 or 24 volts when ordering)
• Amperage 250mA@12V / 150mA@24V
• Coil Resistance 12V=49Ω / 24V=159Ω

OPTIONS:

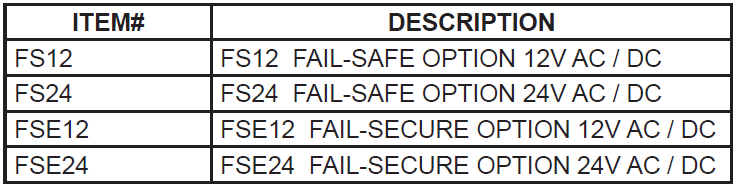

• FAIL SAFE (FS)
• FAIL SECURE (FSE)

Template & installations:

• ESC77/98 INSTALLATION INSTRUCTION AND TEMPLATE
• NESC22 INSTALLATION INSTRUCTION AND TEMPLATE
• TEMPLATE HDESC ELECTRIFIED
• N-MR ELEU Installation Instruction
• N-CVRESC-EU&EL TEMPLATE AND INSTALLATION INSTRUCTION

[Download File]

[Download File]

Electrified Lever Trims & Mortise Lock Case

• 7700, 9800, 2200 Series & Mortise lock case
• Continuous duty solenoids used to insure trouble-free operation
• Internally mounted solenoid to ease installation (no special door prep required)
• Field Reversible
• Low current draw
• 3 Year “No Hassle” Warranty
