EGRESS DELAY

• All in One Device
• 15 or 30 second exit delay (Factory set to 15 secs)
• 1 or 2 second nuisance delay
• Alarm and Lock reset
• 1 to 30 second momentary bypass
• Sustained bypass

BUILT-IN ANNUNCIATION

• Armed mode
• Nuisance mode
• Irreversible egress mode
• Release mode

Optional External Inhibit Input

• Remote override
• Remote reset

CODE COMPLIANCE

• IFC International Fire Code
• IBC International Building Code
• NFPA 101 Life Safety Code
• NFPA 1 Uniform Fire Code
• California Building Code
• Field selectable automatic or manual power up after emergency release or power loss

CONTROL INPUTS

• 1 to 30 second request-to-exit and bypass input with anti-tailgate and jumper selectable door prop alarm
• Reset

TRIGGER MODES

• Egress Alarm triggered by Push Bar
• Trigger input from external device field selectable (N / O or N / C)

MONITORING OUTPUTS

• Armed mode
• Nuisance mode
• Release status

MUST ORDER CR602RF or CR631RF POWER SUPPLY TO HONOR WARRANTY AND UL MARKING

Technical Specifications

• 24VDC @ 430mA
• 24VDC @ 250mA Slave

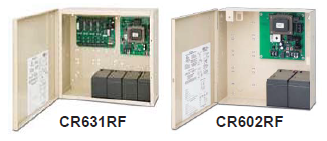

Power Supply CR602RF 1 Amp / CR631RF 1.5 Amp

• Field selectable 12 or 24V DC, regulated and fi ltered
• Auto resetting output circuit protection
• Isolated 13.5 / 27V DC battery charger
• Low battery disconnect
• Emergency release input
• Field selectable UBC & California compliant manual power up
• Input, output and battery status LED’s
• 12” x 12 ¼” x 3 7/8” enclosure
• Choice of output and door control modules
• Batteries not included

APPLICATION

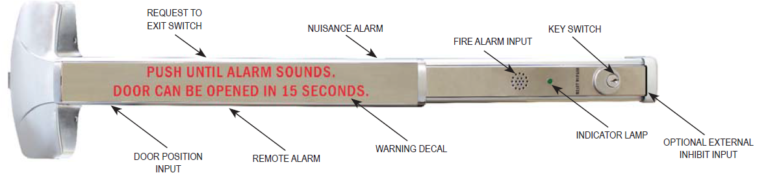

When unauthorized egress is initiated the device delays egress through the door for 15 seconds (or 30 seconds). Meanwhile, the person exiting must wait while personnel or security responds. The door unlocks after 15 seconds have elapsed permitting egress. When powered by a fire control supervised power supply, the lock will release immediately in an emergency. FOR USE WITH: (FIRE AND NON-FIRE)

• DE7700 Rim Panic Exit Device
• DEF7700 Rim Panic Exit Device
• DEMCVR7700 Concealed Vertical Rod (metal doors)
• DEWCVR7700 Concealed Vertical Rod (wood doors)
• DEFMCVR7700 Concealed Vertical Rod (metal doors)
• DEFWCVR7700 Concealed Vertical Rod (wood doors)
• DE7700V Surface Vertical Rod Exit Device*
• DEF7700V Surface Vertical Rod Exit Device*
• DEMR7700 Mortise Exit Device
• DEFMR7700 Mortise Exit Device

* Recommends use of rod and latch guards and strike monitor for surface vertical rods

[Download File]

[Download File]

• For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement. GRADE 1
• 7700 Series Delayed Egress can also be used for fire exit hardware for all types of 4’ x 8’ single doors and 8’ x 8’ double doors for up to 3 hour fire labeled installations, it conforms to standards UL10C and UBC 7-2-1997 codes.
• 5 Year Warranty
