10VL Series

  • $0.00


  • Standard Profile Beveled Vision Lite
  • 20 Gauge Cold Rolled Steel
  • Mitered welded corners with counter sunk mounting holes
  • Single side attaching with matching mounting screws included
  • For use with 3/16” to ¼” glass thickness
  • Also available for 1” glass thickness (10VL Series)
  • Designed for use with 1 ¾” doors only
  • Baked on powder coat finish
  • Color: Standard Bronze
  • Fastener: # 8 x ⅞” flathead phillips head SMS

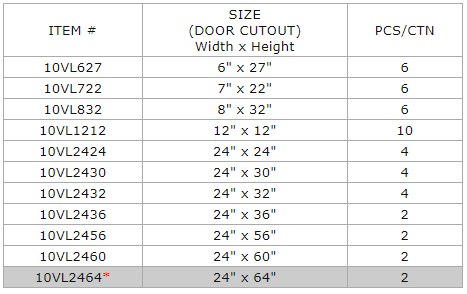

10VL series

*Shaded Items are Non-Fire Rated. See Lites & Louvers Intertek Certification for detailed information on Fire Ratings, or click here.

Options

  • Also available as a KIT or bundle which comes with the Frame, Glass and Glazing Kit.
  • Available glass types are Tempered Glass (1/4”), Superlite I-W Wired Glass (1/4”) and Pyran® Platinum F Glass (3/16”)

Notes

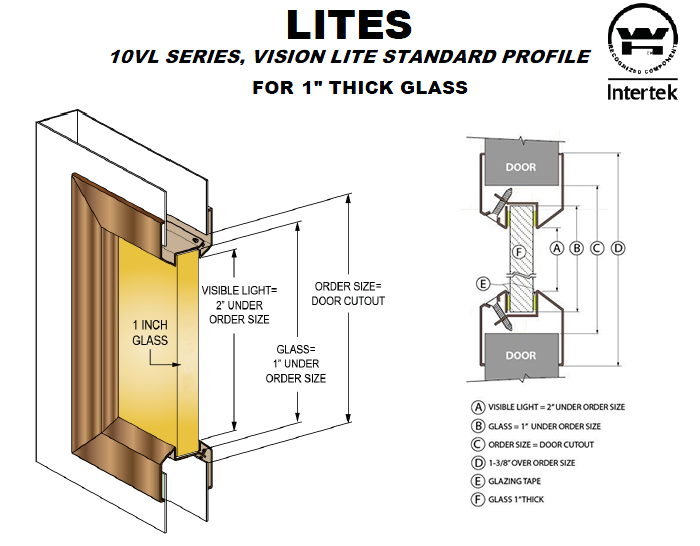

  • Order size is equal to opening size
  • Visible vision opening is 2” under order size
  • Glass size dimension is 1” under complete order size
  • Follow all door manufacturer’s instructions for use and installation of all products
  • Custom sizes are available.



INSTALLATION INSTRUCTIONS

NOTE: Products are sold through authorized distributors ONLY.
