Design Your Own

• Choose a Rose Type
• Select a Lever or Knob
• Specify a Function
• Specify Latch

Tubular Latch Set

• For residential and commercial interior doors with privacy, passage and dummy function

• Stainless Steel Levers, Knobs and Rose

• Door thickness: 1 ⅜” (35) to 1 ¾” (44)
• Latch Backset: 2 ⅜” (60) standard, 2 ¾” (70) optional
• Grade 2 Latch: CTG2 Adjustable 2 ⅜” (60) and 2 ¾” (70) (optional)
• Handing: Most lever designs are non-handed, Handed designs are marked accordingly. Specify handing upon ordering
• Latch Faceplate: 1” x 2 ¼” (25 x 57) square corner
• Emergency Pin: Available as standard for privacy function
• Strike: FLS Full Lip Strike 1” x 2 ¼”, ¼” round corner (standard) TS T-Strike 1 ⅛” x 2” square corner (standard) ASA478 US32D ANSI Strike 4 ⅞” x 1 ¼” (optional)
• Function: Non-Keyed

Tubular Entry Set

• For residential and commercial exterior and interior doors with entrance, privacy, passage and dummy function

• Stainless Steel Levers, Knobs and Escutcheons

• Door thickness:1 9⁄16” (40) - 2 (50)
• Latch Backset: 2 ⅜” (60) standard ; 2 ¾” (70) optional
• Handing: Field reversible for passage and privacy function
• Latch Faceplate: 1” x 2 ¼” (25 x 57) square corner
• Strike: FLS Full Lip Strike 1” x 2 ¼”, ¼” round corner (standard) TS T-Strike 1 ⅛” x 2” square corner (standard) ASA478 US32D ANSI Strike 4 ⅞” x 1 ¼” (optional)

• Cylinder and Keys: Schlage C Keyway ; Cylinder 5-pin with 2 keys ; Keying service available
• Deadbolt: Latch Bolt: Grade 1, 4-way Drive-In, Brass bolt ; Adjustable 2 ⅜” (60) and 2 ¾” (70) Deadbolt Strike: 1 ⅛” x 2 ¾” (29 x 70) square corner standard

• Emergency Pin: Available as standard for privacy function

• Available for Entrance, Privacy and Passage functions of lever / knob

Rose & Escutcheon Design

NM Series Mortise Lock

• For Doors - 1 ¼”
• Backset - 2 ¾”
• Lockcase - Heavy gauge zinc chromate steel
• Front - Heavy gauge steel 8” x 1 ¼” x 3/32”. Accommodates flat doors and doors beveled ⅛” in 2”
• Armored Front - Wrought brass attached by machine screws to lock case front
• Deadbolt - 1” throw, brass chrome-plated with hardened steel rollers
• Guard-bolt - Extruded brass, chrome plated
• Stop-works - Rocker type, brass, chrome-plated
• Strikes - Brass, non-handed curve strike 4 ⅞” x ¼”. Curved-up strike available upon request
• Handing - Handed. Easily field-reversible
• Trim - See Lever / Knob Designs, Giro / Quadro Rose
• Cylinder................ As specified
• Keyway................. As specified
• Finishes................ As specified
• UL Listing - UL Listed “A” Label (3 hours), for use on fire doors, single or pair of doors. “F” mark stamped on strike
• ANSI - Lock body conforms to Federal specification Type 86; and to all dimensional and operational performances of ANSI A156.13, Series 1000 Grade 1, exceeds 1,000,000 cycles
• Model Number Reference

Latches

Strikes

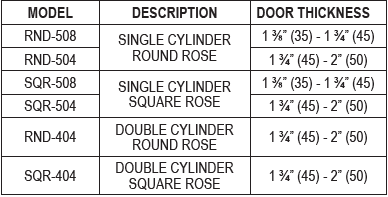

Deadbolts

• For residential and commercial exterior and interior doors

• Stainless Steel

• Latch Bolt: Grade 1, 4-way Drive-In, Brass, Satin Nickel bolt
• Latch Backset: Adjustable 2 ⅜ (60) and 2 ¾ (70)
• Handing: Non-Handed
• Latch Faceplate: 1” x 2 ¼” (25 x 57)
• Deadbolt Strike: 1 ⅛” x 2 ¾” (29 x 70) square corner (standard)
• Security Strike: 1 ⅛” x 2 ¾” x 3⁄32” (29 x 70 x 2) (standard)
• Cylinder and Keys: Schlage C Keyway, Cylinder 5-pin with 2 keys Keying service available

• Door Preparation

Exploded Diagrams
